Modular Aluminum Piping & Fittings - QUICKAIR

We are authorized dealers for QUICKAIR, offering Modular Aluminum Piping & Fittings, Pneumatic Fittings and PU Tubes and our setup is situated in Pune, Maharashtra, India.

QUICKAIR offers a high-performance modular aluminum piping system designed for efficient and reliable air distribution in industrial environments. Known for its durability, lightweight structure, and corrosion resistance, the QUICKAIR system ensures easy installation, low maintenance, and long-term performance.

Supply & installations of Quickair Modular Aluminum Piping & fittings. Metal Modular Push Fit Piping For Stainless Steel, Carbon Steel Aluminium

For over 20 years industries have relied upon Quickair for most innovative and dependable modular piping and flow control solutions. From inception over 20 years ago Quickair has grown to be a major international business with representation all around the world. Committed to Innovation.

of engineering skills and creativity that our competitors still can't match. Some innovation of adopted immediately, whilst other may require thousands of hours of testing and certification before they can be offer to our customers with every products Quickair" develops we can be sure of one thing, the quality and reliability are an integral part.

    Size 20mm to 200mm (8”) Unmatched quality, selection & value !
     Removable and Re-usable

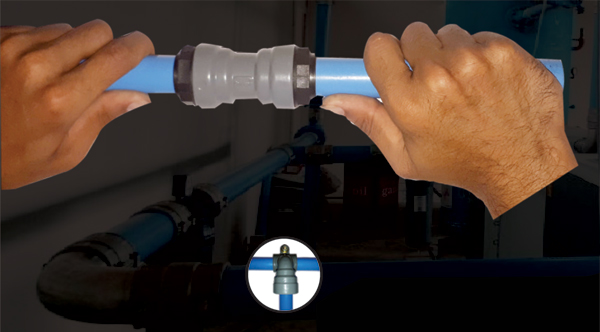

 Push-Fit Connections
 Installs in Seconds
 Full Flow Efficiency



Typical ApplicationsStainless Steel
 Where water quality and hygiene are issues
 Hot and cold water services
 Heating and chilled water applications
 Low temperature hot water heating
 Pressurized, vented and unvented
heating systems
 Food, Pharmaceutical & Chemicals
 Industrial Liquids Gases
 Vacuum and Inert Gases
Carbon Steel
 Hot and cold water services
 Heating applications
 Low temperature hot water heating
 Pressurized, vented and unvented
heating systems
 Oil, Steam, Power, Pulp, Refinery
 Industrial Liquids Gases
 Vacuum and Inert Gases
Aluminium

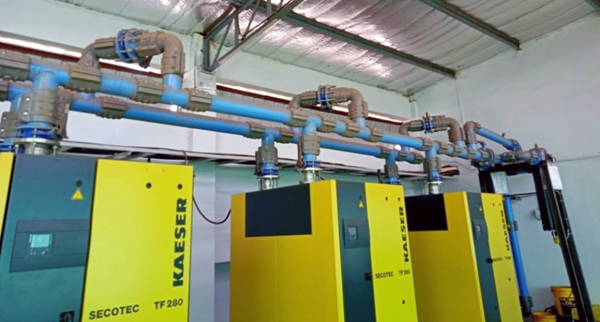

 Plant Air
 Manufacturing hand tool operation
 Manual and automated welding operations
 Semi-conductor tool hook up
 Valve actuation-control systems
 Robotic installations
 Industrial Liquids Gases
 Vacuum and Inert Gases

Explore more photos

REQUEST A QUOTE >>

Technical Specification

Specification	Stainless Steel	Carbon Steel	Aluminium
Material of Construction (body)	CF / CF8M	WCB	Aluminium
O ring & Lip gasket material	HNBR / EPDM / VITON	HNBR / EPDM / VITON	HNBR / EPDM / VITON
Grab ring	Stainless Steel	Stainless Steel	Stainless Steel
Fitting body surface treatment	Electro Polished	Black / galvanized	Powder coated / anodized

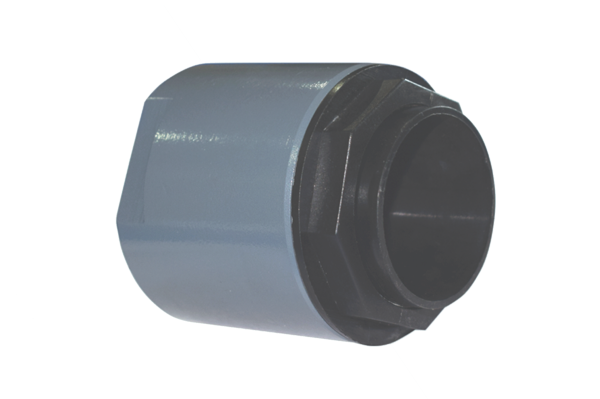

End Plug	CF8/CF8M/Engineering Plastic	WCB / Engineering Plastic	Aluminium/Engineering Plastic
Suitable tubes	Stainless steel	MS / GI	Aluminium
Pressure	Up to 20 Bar	Up to 20 Bar	Up to 20 Bar
Temperature	Up to 200°C	Up to 200°C	Up to 200°C
Size	20, 25, 32, 40, 50, 63mm 3”, 4”, 6”, 8”	20, 25, 32, 40, 50, 63mm 3”, 4”, 6”, 8”	20, 25, 32, 40, 50, 63mm 3”, 4”, 6”, 8”
Manufacturing Standard	ASME B31-1	ASME B31-1	ASME B31-1
Pipe Standard	EN-10312, GW541, Table 4.3, BS4127	EN-10305-3, BS4127	IS2763, IS3965, EN-755-2

Selection Chart

FLOW RATE
			LENGHT
			164 ft	328 ft	429 ft	984 ft	1640 ft	2460 ft	3280 ft	4265 ft	5249 ft	6561 ft
Nm³/Hr	Nl/min	cfm	50 m	100 m	150 m	300 m	500 m	750 m	1000 m	1300 m	1600 m	2000 m
10	167	6	16	16	16	20	20	20	25	25	25	25
30	500	18	16	20	20	25	25	25	25	25	32	32
50	833	29	20	25	25	25	25	25	32	32	32	32
70	1167	49	20	25	25	25	32	40	40	40	50	50
100	1667	59	25	25	32	32	32	40	50	50	63	63
150	2500	88	32	32	32	32	40	50	63	63	80	80
250	4167	147	32	32	40	40	50	50	63	80	80	80
350	5883	206	32	40	40	50	50	63	63	80	80	80
500	8333	294	40	50	50	50	50	63	80	80	80	80
750	12500	441	50	50	50	50	50	63	80	80	80	80
1000	16667	589	50	50	50	50	63	80	80	80	80	80
1500	25000	883	50	50	63	63	63	80	80	80	80	80
2000	29167	1030	50	50	63	63	80	80	80	80	80	80
3000	50000	1766	50	63	63	80	80	100	150	150	150	150
3500	58332	2060	80	80	100	100	150	150	150	150	150	150
4000	66657	2354	80	100	100	100	150	150	150	150	150	150
4500	74983	2648	80	100	100	150	150	150	150	150	150	150
5000	83308	2942	80	100	100	150	150	150	150	150	150	150
5500	91661	3237	100	100	100	150	150	150	150	150	150	150
6000	99986	3531	100	100	150	150	150	150	150	150	150	150
6500	108311	3825	150	150	150	150	150	150	150	150	200	200
7000	119978	4237	150	150	200	150	150	150	150	200	200	200
8000	133315	4708	200	200	200	200	200	200	200	200	200	200
